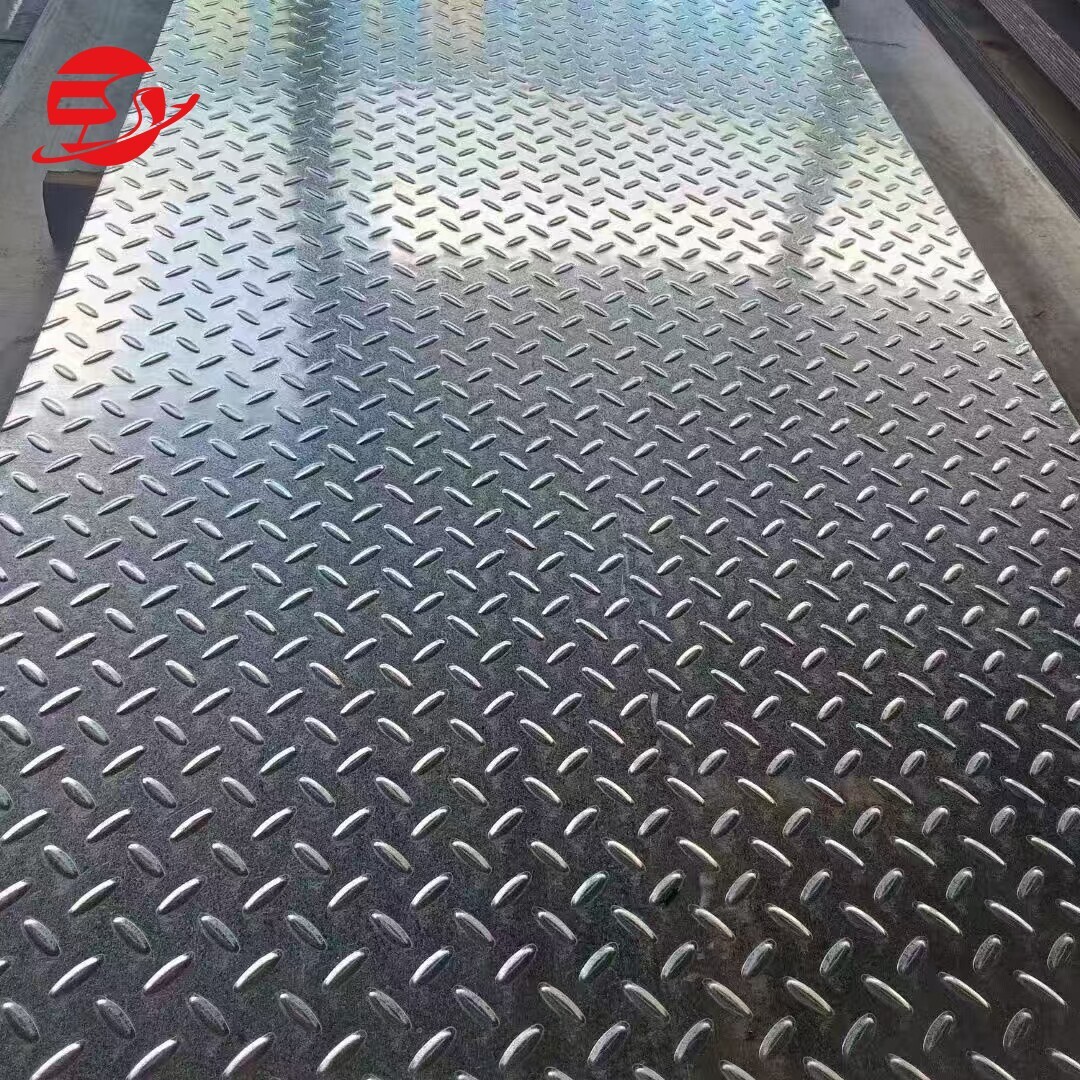

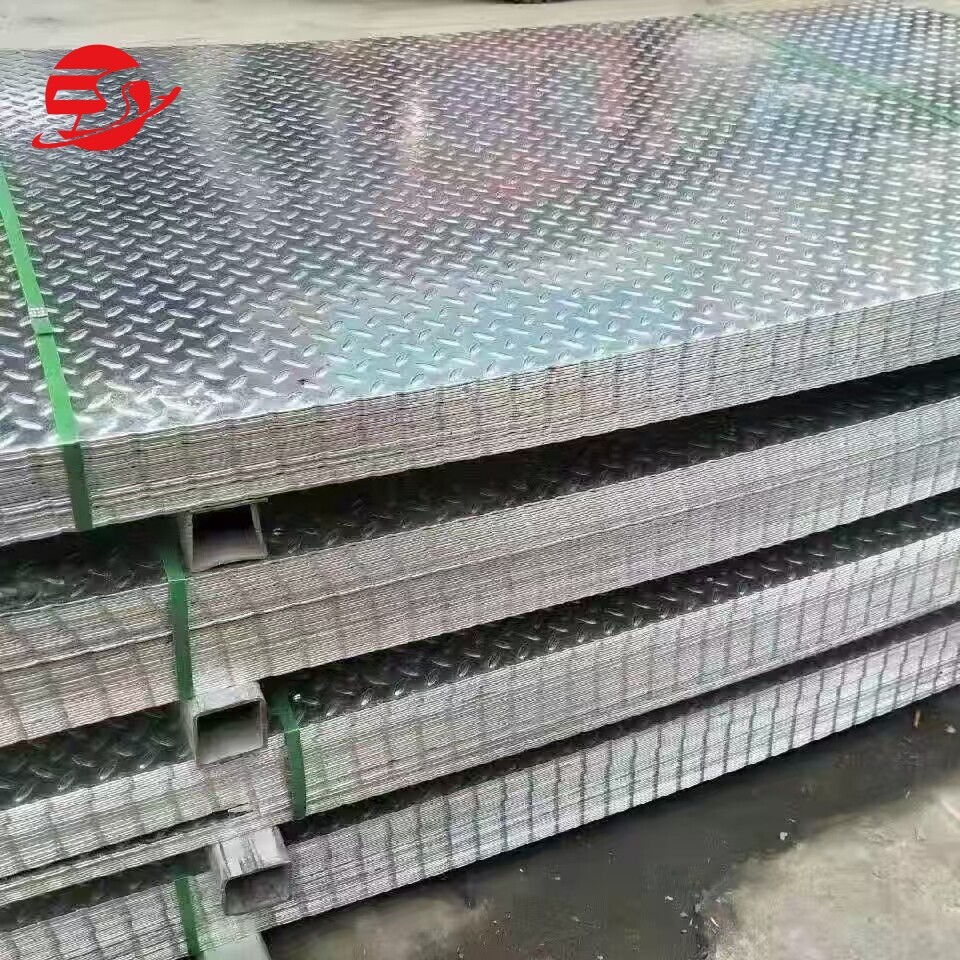

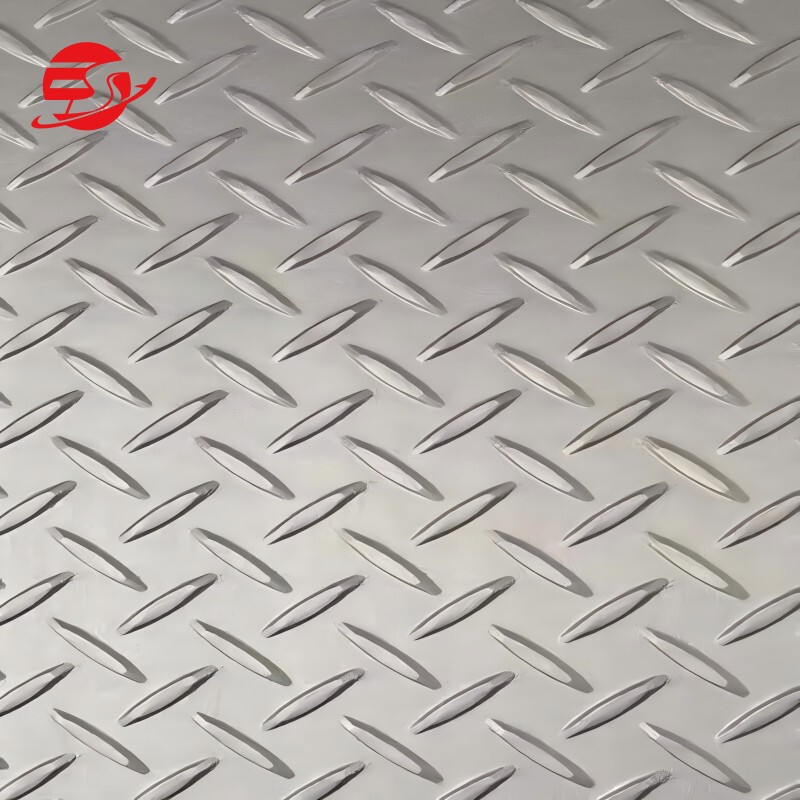

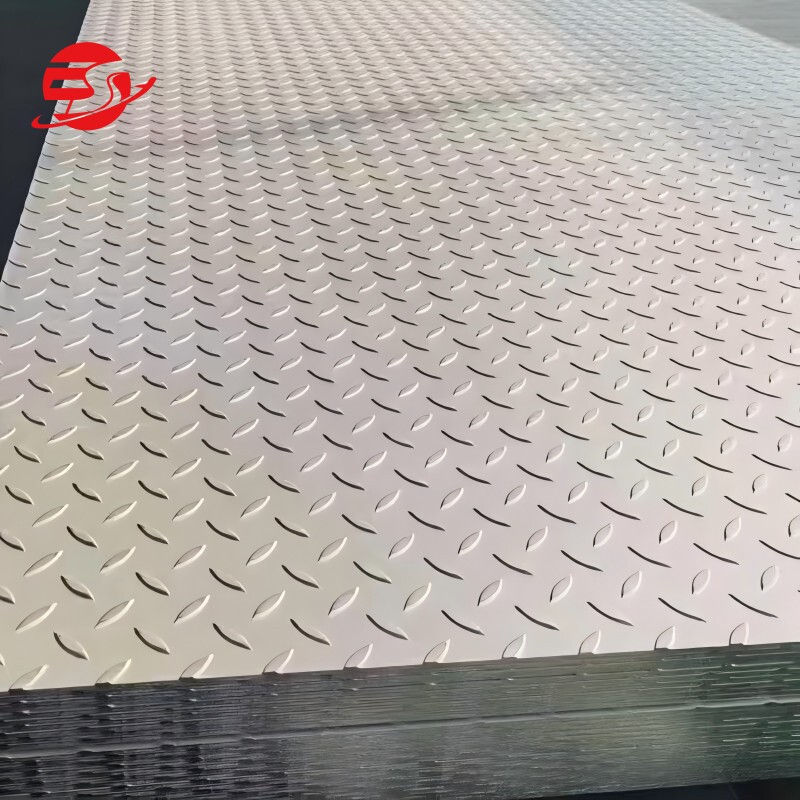

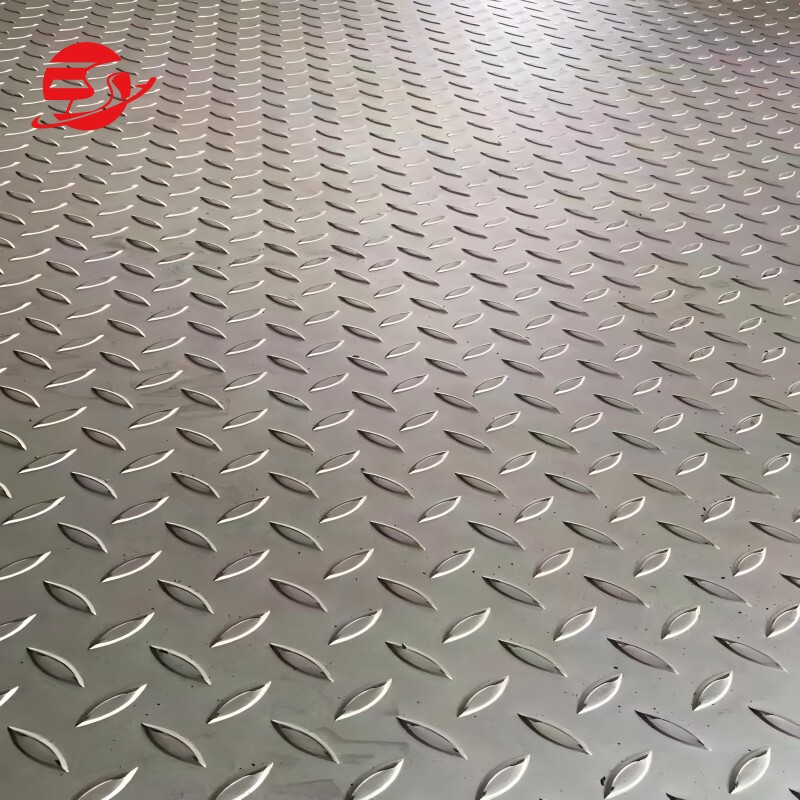

Stainless Steel Diamond Plate
The stainless steel plate has a smooth surface, high plasticity, toughness and mechanical strength, and is resistant to corrosion by acids, alkaline gases, solutions and other media. It is an alloy steel that is not easy to rust,
Phone : +86 13396443111
Email : ess@essiron.com
Wechat : +86 13396443111
Whatsapp : +86 13396443111
Contact Us
Product Description
Product NameStainless Steel Plate
TechniqueCold Rolled/ Hot Rolled
Thickness0.3mm-3mm,>3mm
Width60mm-1500mm
Lengthas requirement
SurfaceBA/2B/NO.4/8K/HL
Delivery timeWithin 7-15 Working Days
GradeCSiMnPNiCrMo
201≤0.15≤0.755.5-7.5≤0.063.5-5.516.0-18.0-
202≤0.15≤1.07.5-10.0≤0.064.-6.017.0-19.0-
301≤0.15≤1.0≤2.0≤0.0456.0-8.016.0-18.0-
302≤0.15≤1.0≤2.0≤0.0358.0-10.017.0-19.0-
304≤0.08≤1.0≤2.0≤0.0458.0-10.518.0-20.0-
304L≤0.03≤1.0≤2.0≤0.0359.0-13.018.0-20.0-
309S≤0.08≤1.0≤2.0≤0.04512.0-15.022.0-24.0-
310S≤0.08≤1.5≤2.0≤0.03519.0-22.024.0-26.0-
316≤0.08≤1.0≤2.0≤0.04510.0-14.016.0-18.02.0-3.0
316L≤0.03≤1.0≤2.0≤0.04512.0-15.016.0-18.02.0-3.0
321≤0.08≤1.0≤2.0≤0.0359.0-13.017.0-19.0-
630≤0.07≤1.0≤1.0≤0.0353.0-5.015.5-17.5-
631≤0.09≤1.0≤1.0≤0.0306.50-7.7516.0-18.0-
904L≤2.0≤0.045≤1.0≤0.03523.0-28.019.0-23.04.0-5.0
2205≤0.03≤1.0≤2.0≤0.0304.5-6.522.0-23.03.0-3.5
2507≤0.03≤0.80≤1.2≤0.0356.0-8.024.0-26.03.0-5.0
2520≤0.08≤1.5≤2.0≤0.0450.19-0.220.24-0.26-
410≤0.15≤1.0≤1.0≤0.035-11.5-13.5-
430≤0.12≤0.75≤1.0≤0.040≤0.6016.0-18.0-




GradeTensile Strength (Mpa)Yield Strength (Mpa)Elogation(%)Hardness (HRB)
201≥655≥310≥40≤100
202≥620≥260≥40≤100
304≥515≥205≥40≤92
304L≥485≥170≥40≤88
316≥515≥205≥40≤95
316L≥485≥170≥40≤95
321≥515≥205≥40≤95
409≥380≥205≥20≤80
409L≥350≥185≥22≤80
430≥450≥205≥22≤80



 Stainless steel standard steel grade comparison table and density table

ChinaJapanUSASouth KoreaEuropean UnionAustraliaTaiwan, ChinaDensityt/m3
GB/T20878JISASTMKSBSENASCNS
12Cr13SUS403403STS403—4034037.75
20Cr13SUS420J1420STS420J11.4021420420J17.75
30Cr13SUS420J2—STS420J21.4028420J2420J27.75
10Cr17SUS430430STS4301.40164304307.70
68Cr17SUS440A440ASTS440A—440A440A7.70
06Cr19Ni10SUS304304STS3041.43013043047.93
022Cr19Ni10SUS304L304LSTS304L1.4306304L304L7.93
06Cr17Ni12Mo2SUS316316STS3161.44013163167.98
022Cr17Ni12Mo2SUS316L316LSTS316L1.4404316L316L7.98
06Cr18Ni11TiSUS321321STS3211.45413213217.93
06Cr18Ni11NbSUS347347STS3471.4553473477.98

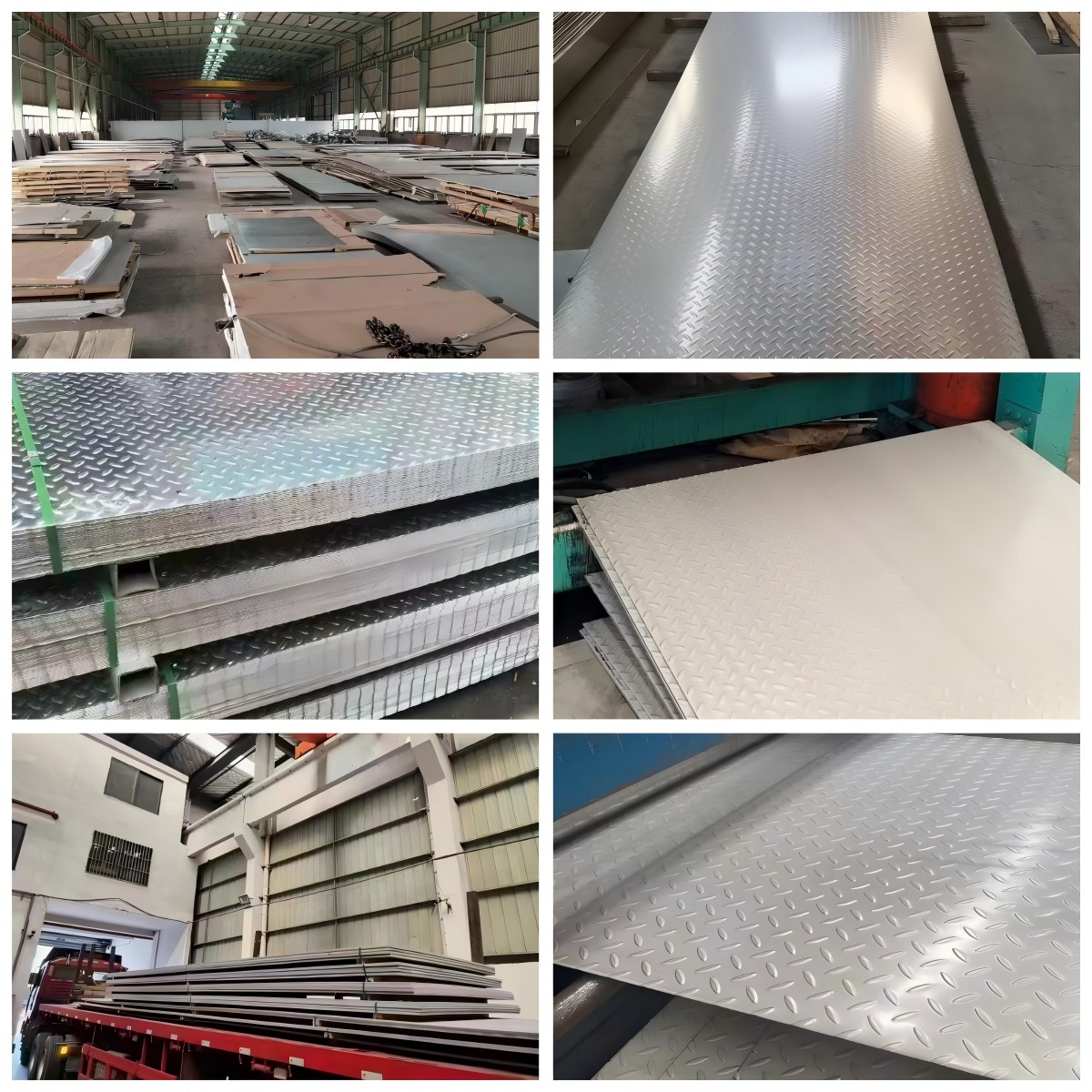

Product Show
