Glass fiber reinforced plastic (GFRP) is a type of fiber-reinforced composite material. It has the characteristics of light weight, high strength, corrosion resistance, easy cutting and non-magnetic.
It is widely used in road bridge deck paving, foundation pit construction, coastal engineering, tunnel construction, subway diaphragm walls, retaining piles, etc.
Fiber-reinforced composite materials are materials formed from high-performance fibers, synthetic resin matrices, and curing agents using appropriate molding processes; high
Performance fiber is the reinforcing material, and synthetic resin is the matrix material. The fiber has high tensile strength and is the main provider of strength for glass fiber bars.
It mainly plays the role of bearing load. The matrix material has the function of bonding and transmitting shear force. Its physical properties can affect the physical properties of fiber reinforced materials.
| Related standards/ Related standards |
| serial number Serial number | Standard Standard | standard name standard name |
| 1 | GB 50608-2010 | Technical specification for application of fiber reinforced composite materials in construction projects Technical specification for application of fiber reinforced composite construction engineering |
| 2 | JG/T406-2013 | Glass fiber reinforcement for civil engineering Glass fiber reinforced concrete for civil engineering |
| 3 | SO 10406-1-2013 | Fibre-reinforced polymer (FRP)reinforcement of concrete.Test methods.Part 1:FRP bars and grids |
| 4 | ACl440.3R-04 | Guide Test Methods for Fiber-ReinforcedPolymers (FRPs)for Reinforcing orStrengthening Concrete Structures |
| 5 | CSA-S806-02-2002 | Design and Construction of Building Components with Fiber Re- forced Polymers |
| Common models and technical parameters of glass fiber bars/ |
| Glass fiber rib common models and technical parameters |
| Specifications and models Specification model | 8 in | φ10 | φ12 | φ14 | φ16 | φ18 | φ20 | φ22 | φ25 | φ28 | φ30 | φ32 | φ34 | φ36 |

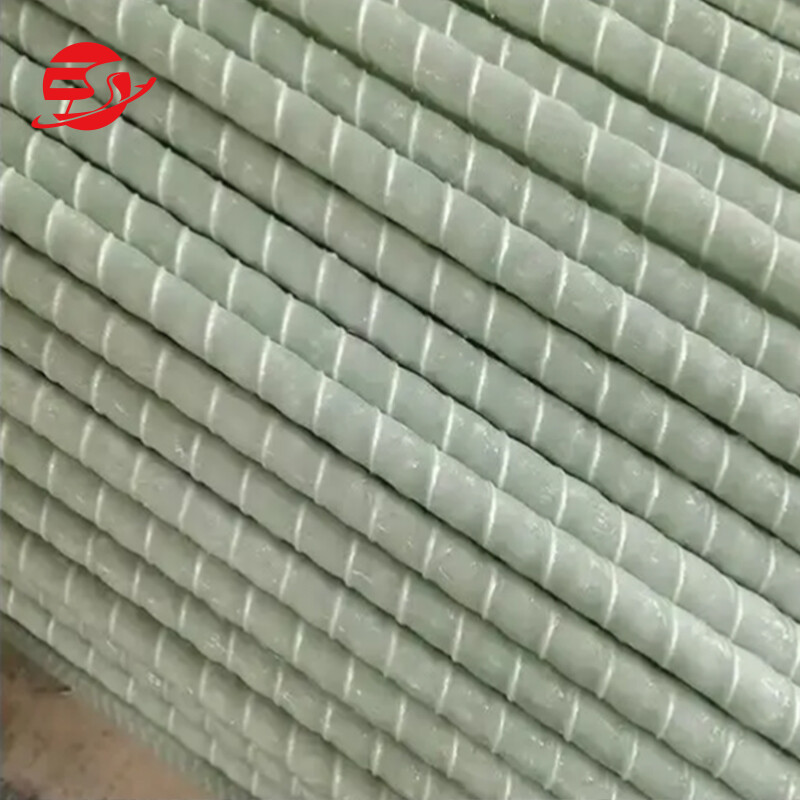

| Exterior Exterior | The texture is uniform, no bubbles, and no cracks. The thread shape and pitch should be regular and there should be no damage. Uniform texture,no bubbles,no cracks,thread shape,tooth pitch should be neat,there should be no damage |
| Rod diameter mm Rod diameter | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | 28 | 30 | 32 | 34 | 36 |
| Tensile strengthMPa tensile strength | ≥600 | ≥550 | ≥550 | ≥450 |
| Shear strength MPa Shear strength | ≥110 | ≥110 | ≥110 | ≥110 | ≥110 | ≥110 | ≥110 | ≥110 | ≥110 | ≥110 | ≥110 | ≥110 | ≥110 | ≥110 |
| Ultimate tensile strain% Ultimate tensile strain | ≥1.2 | ≥1.2 | ≥1.2 | ≥1.2 | ≥1.2 | ≥12 | ≥1.2 | ≥1.2 | ≥1.2 | ≥1.2 | ≥12 | ≥1.2 | ≥1.2 | ≥12 |
| Elastic modulusGPa Elastic Modulus | ≥40 | ≥40 | ≥40 | ≥40 | ≥40 | ≥40 | ≥40 | ≥40 | ≥40 | ≥40 | ≥40 | ≥40 | ≥40 | ≥40 |
| Diameter deviationmm Direct deviation | ±0.2 | ±0.3 | ±0.4 |
| Straightnessmm/m Straightness | ≤3 | ≤4 | ≤5 |
| Reference total amountkg/m reference weight | 0.1 | 0.15 | 0.21 | 0.28 | 0.32 | 0.43 | 0.55 | 0.61 | 0.95 | 1.15 | 1.36 | 1.51 | 1.75 | 1.91 |
